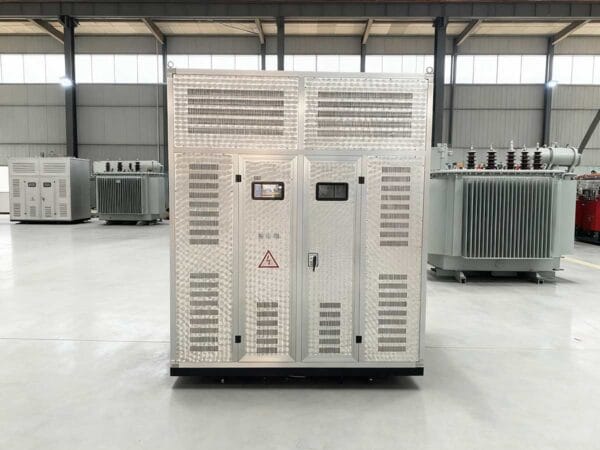

Description of Dry Type Cast Resin Distribution Transforme

As an energy-saving pioneer in power distribution, our Dry Type Cast Resin Distribution Transformer adopts a high-performance amorphous alloy iron core and an innovative three-phase three-column manufacturing process. This advanced design greatly reduces iron loss, making its no-load loss only about 25% of that of conventional dry-type transformers. It combines the inherent safety and reliability of cast resin dry-type transformers with exceptional energy efficiency, providing a cost-effective and eco-friendly solution for modern power distribution networks.

Engineered for peak performance, our Dry Type Cast Resin Distribution Transformer boasts industry-leading specifications: Rated capacity ranges from 50kVA to 2500kVA, with primary voltage up to 35kV and secondary voltage at 0.4kV/0.69kV, adapting to diverse grid demands. Leveraging amorphous alloy iron cores, its no-load loss is minimized to ≤25% of conventional dry-type transformers (e.g., 500kVA model: no-load loss ≈ 280W vs. 1100W for standard units), while load loss remains ultra-low at ≤80% of traditional designs. It features F-class insulation for thermal stability (max. operating temperature: 155°C) and IP20/IP30 protection ratings, ensuring safety in dusty or semi-outdoor environments. Cooling is efficient via air natural (AN) mode, eliminating the need for oil or forced ventilation.

This transformer excels across critical scenarios: Ideal for commercial hubs (shopping malls, high-rises) where low noise and fire safety are paramount; industrial facilities (factories, manufacturing plants) requiring robust performance under variable loads; renewable energy systems (solar/wind farms) to optimize power conversion efficiency; data centers and telecom stations, where stable, low-loss operation safeguards sensitive equipment; and urban infrastructure (hospitals, schools), aligning with green building standards. A testament to innovation, it merges cast resin durability with amorphous alloy energy savings—your trusted partner for modern, eco-conscious power distribution.

Parameter of Dry Type Cast Resin Distribution Transforme

Rated Capacity (kVA)	No-load Loss (W)	Load Loss (W)	Short-circuit Impedance (%)
30	130	605	4
50	185	845	4
80	250	1160	4
100	270	1330	4
125	320	1565	4
160	365	1800	4
200	420	2135	4
250	490	2330	4
315	600	2945	4
400	665	3375	4
500	790	4130	4
630	910	4975	6
800	1035	5895	6
1000	1205	6885	6
1250	1420	8190	6
1600	1665	9945	6
2000	20758	12240	6
2500	2450	14535	6

Feature of Dry Type Cast Resin Distribution Transforme

Our Dry Type Cast Resin Distribution Transformer stands out with a suite of superior features, designed to redefine performance in power distribution systems.

Unmatched Reliability is at its core: Compliant with rigorous standards including GB1094.11-2007, GB/T22072-2008, and IEC60076-11, it excels in harsh conditions—withstanding extreme storage, transportation, and operational environments (from challenging climates to tough geographical settings). It boasts stronger overload capacity than standard dry-type transformers, coupled with excellent short-circuit resistance, ensuring stable operation even under fluctuating loads. Best of all, it’s maintenance-free under normal use, reducing operational hassle and costs.

Superior Safety is non-negotiable: The transformer is non-combustible, flame-retardant, and eliminates risks of explosion or harmful gas emissions. Its design ensures zero harm to the environment, surrounding equipment, or human health during operation, making it ideal for safety-critical spaces.

Strong Environmental Compatibility further elevates its appeal: From manufacturing to transportation, storage, and operation, it leaves no environmental footprint. Post-service, coils are fully recyclable, enabling resource reuse without pollution. Additionally, its innovative core structure and advanced manufacturing processes reduce noise by 4-5dB below current standards—successfully solving the high-noise issue common in amorphous transformers, for quieter, greener operations.

These features make our Dry Type Cast Resin Distribution Transformer a trusted choice for efficient, safe, and sustainable power distribution.
