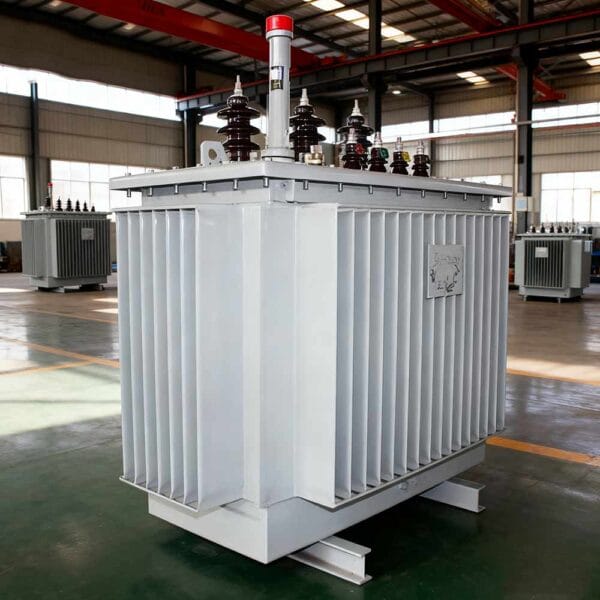

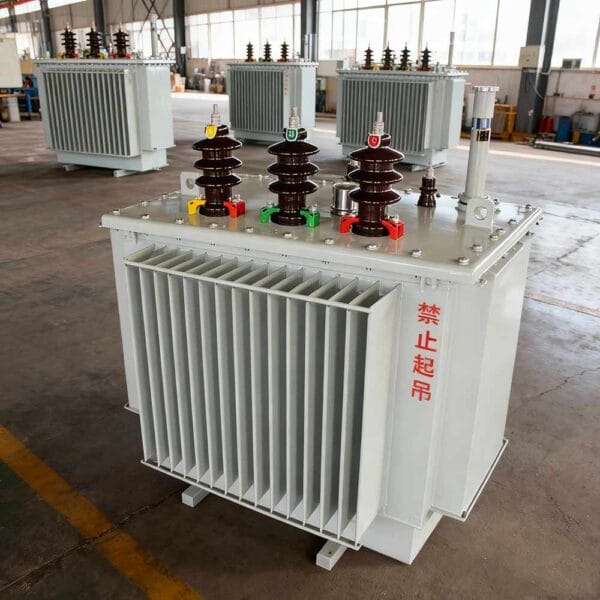

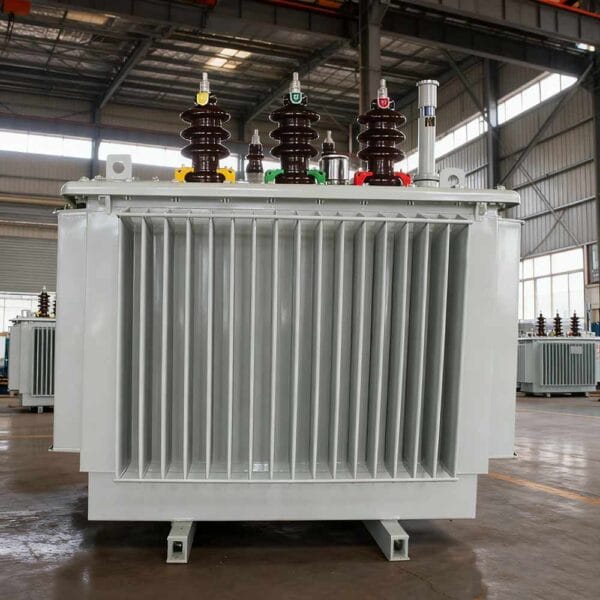

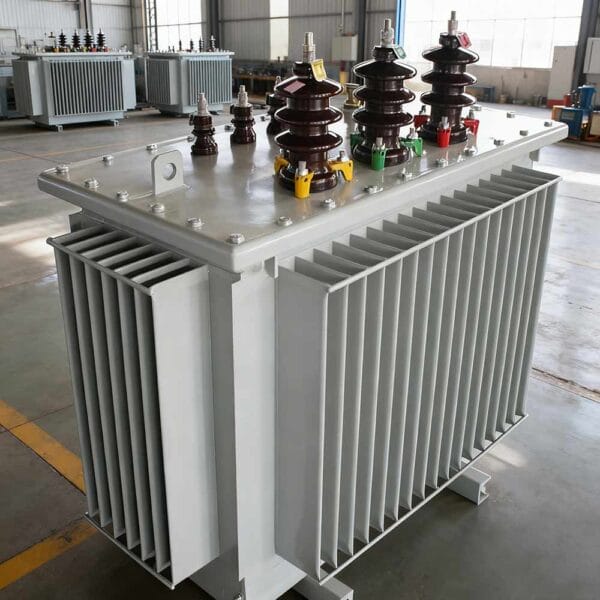

Description of 35kv Oil Immersed Distribution Transformer

The 35kv Oil Immersed Distribution Transformer is a high-efficiency electrical device designed with a more rational structure and better overall performance, making it a reliable choice for modern power systems.

As the name suggests, this transformer takes oil as its core insulation method—ensuring stable electrical insulation to support safe operation. It also relies on oil for cooling, with common cooling modes including oil-immersed self-cooling, oil-immersed air-cooling, oil-immersed water-cooling, and forced oil circulation. These cooling options let the transformer adapt to different working environments easily.

In terms of application, the 35kV Oil Immersed Distribution Transformer is highly versatile. It works well for power grid upgrades in both urban and rural areas, and meets the power needs of industrial and mining enterprises. Additionally, it is especially suitable for use as a component in combined transformers and transformers for prefabricated substations, fitting seamlessly into compact power setups.

Parameter of 35kv Oil Immersed Distribution Transformer

Model	Voltage Combination			Connection Group Symbol	No-load Loss (W)75℃	Load Loss R(W)	Impedance Voltage (%)	No-load Current(%)	Length L(mm)	Width W(mm)	Height H(mm)	Gauge Horizontal*Vertical (mm)	Active parts Weight(Kg)	Oil Weight(Kg)	Total Weight(Kg)
Model	High Voltage (kV)	Tapping Range of High Voltage%	Low Voltage (kV)	Connection Group Symbol	No-load Loss (W)75℃	Load Loss R(W)	Impedance Voltage (%)	No-load Current(%)	Length L(mm)	Width W(mm)	Height H(mm)	Gauge Horizontal*Vertical (mm)	Active parts Weight(Kg)	Oil Weight(Kg)	Total Weight(Kg)
50	35 ±5%	±2×2.5%	0.4	Dyn11/ Yyn0	160	1200/1140	6.5	1.3	1195	935	1825	660*660	300	330	860
38.5
100					230	2010/1910		1.1	1200	995	1935	660*660	470	383	1130
125					270	2370/2260		1.1	1235	940	1955	660*660	550	465	1335
160					280	2820/2680		1	1285	895	1950	660*660	580	485	1475
200					340	3320/3160		1	1310	1150	1985	660*660	680	595	1755
250					400	3950/3760		0.95	1450	1090	2010	660*660	860	650	2000
315					480	4750/4530		0.95	1930	1065	2320	820*820	980	765	2290
400					580	5740/5470		0.85	1850	1165	2015	820*820	1170	885	2725
500					680	6910/6580		0.85	2045	1205	2415	820*820	1340	960	3090
630					830	7860		0.65	2085	1240	2515	660*660	1550	895	3810
800					980	9400		0.65	2305	1615	2685	820*820	1990	1030	4510
1000					1150	11500		0.65	2545	1540	2590	1070*1070	2415	1475	5055
1250					1400	13900		0.6	2495	2010	2675	820*820	2480	1405	5290
1600					1690	16600		0.6	2680	2100	2770	820*820	2600	1490	5450
2000					1990	19700		0.55	2790	2180	2860	820*820	2720	1590	5600
2500					2360	23200		0.55	2900	2290	2980	1070*1070	2830	1720	5760
